Clutch Pedal. |
Turn-over Type Clutch Pedal |
|
|

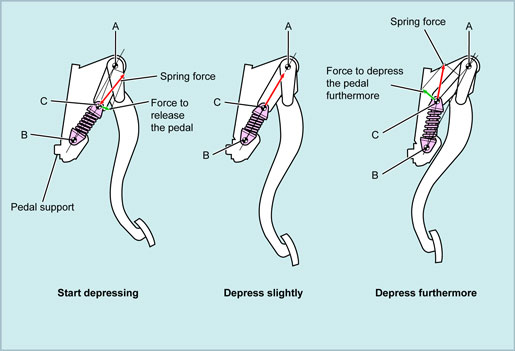

Turn-over type clutch pedals are clutch pedals that utilize spring force to reduce the operating force. When the pedal is depressed and goes beyond a certain position, the spring force operating direction changes and is added with the force to be depressed. The spring is installed between the clutch pedal and pedal support and force works on the spring to keep it constantly extended. There are various types of turn-over type clutch pedals with different constructions. |
|
|
(3/1) |
||
