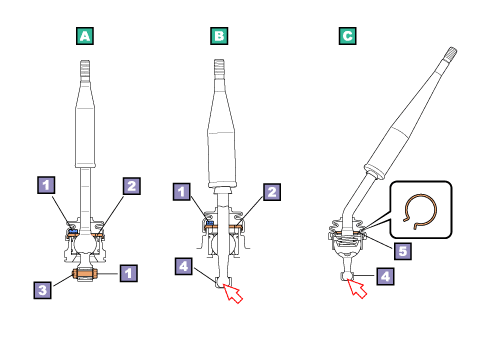

Bolt |
|
|
Retainer |
|
|
Nut |
|
|
Collar |
|
|
Clip |
 |
Apply grease |
|
|
|
|
1.
|
Install shift lever
(FR models) |
| (1) |
Apply grease to the tip of the shift lever (collar
section). |
| (2) |
First verify the directional positioning of the
shift lever and then install it on the transmission. |
| (3) |
Fasten the shift lever. |
| Note that there are three
types of shift levers: |
|
|
Fastened with bolts, nut and retainer |
|
|
Fastened with bolts and retainers |
|
|
Fastened with clip |
| |
| 2. |
Refit the centre console |
|
