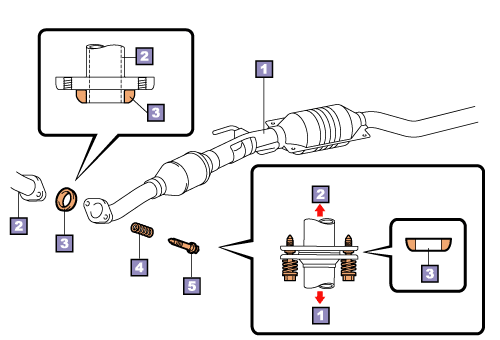

Exhaust pipe |
|
|
Exhaust manifold |
|
|
Gasket |
|
|
Compression spring |
|
|
Bolt |
|
|
|
|
1.
|
Using vernier calipers, measure the compression
spring's free length.
|
| HINT: |
| If the value is outside the standard,
replace the spring with a new one. |
| |
|
2.
|
Mount a new gasket on the exhaust pipe.
|
| HINT: |
| If the gasket of exhaust pipes that
use a compression spring does not naturally separate from the pipe, it can be
reused. If reusing it, be careful not to damage it. |
| |
|
3.
|
Align the hole position of the exhaust manifold
with that of the exhaust pipe, and then secure with the compression springs and
bolts.
|
|
HINT:
|
|
•
|
Installation of the exhaust pipe is a job for
two people.
|
|
•
|
Generally, nut for the exhaust pipe is not reusable.
Be sure to install the new one.
|
|
