PRO TECHNICIAN
Limited Slip Differential.
LSD (Limited Slip Differential)
Click on the underlined sentence.
2.

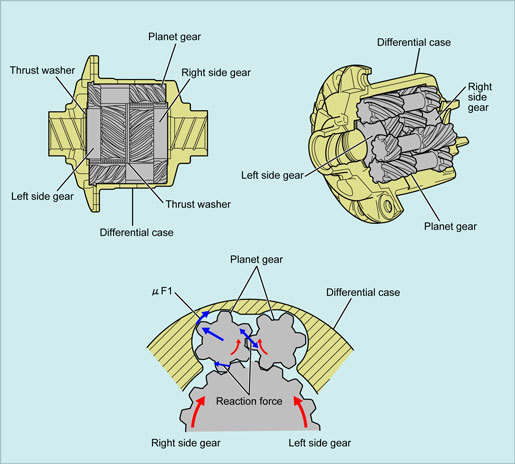

Helical gear type torque-sensing LSD
The limited slip is accomplished primarily by the friction that is generated between the planet gear's tooth tips and the differential case's inner wall, and the friction that is generated between the side gear end face and the thrust washer.
(8)
