PRO TECHNICIAN
Disassembly
Remove Bearing and Oil Seal
Click on the underlined sentence.
SST (Steering worm bearing puller)
Front transaxle case oil seal
2.
Remove oil seal
(1)

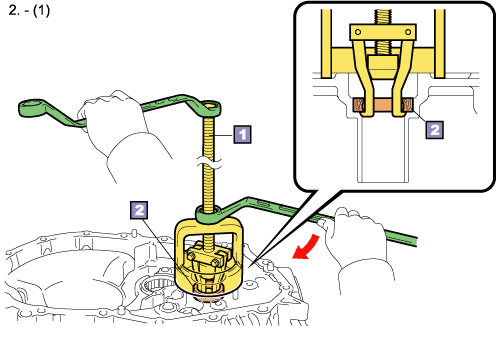

Use SST to remove the front transaxle case oil seal.
(2)
Use SST and a hammer to remove the transaxle case oil seal.
(3)
Use SST and a hammer to remove the transmission case oil seal.
(23)
