PRO TECHNICIAN
Disassembly
Remove Bearing and Oil Seal
Click on the underlined sentence.
SST (Oil seal puller)
Output shaft front bearing
1.
Remove bearing, outer race and shim
(1)

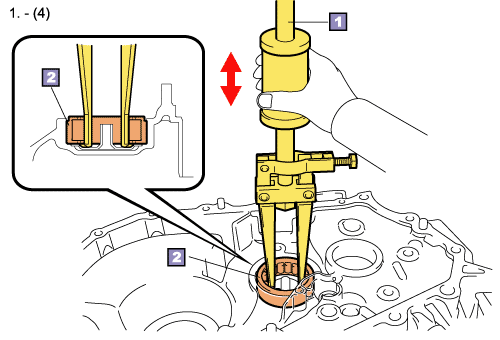

Use SST to remove the input shaft front bearing.
(2)
Use SST to remove the differential case front bearing, outer race and shim.
(3)
Use SST to remove the differential case rear bearing, outer race and shim.
(4)
Use SST to remove the output shaft front bearing.
(22)
