1.
|

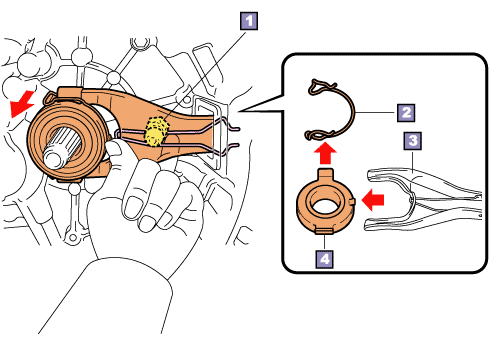

Remove clutch release fork
|
|
Pull the clutch release fork forward and then
separate the clutch release fork from the release fork support. Then remove the
clutch release fork with release bearing from the front transaxle case (clutch
housing).
|
| |
|
2.
|
Remove release bearing
|
|
(1)
|
Remove the release bearing from the clutch release
fork.
|
|
(2)
|
The direction of the release bearing clip makes
a difference. Make sure you note the correct positioning before removing the release
bearing.
|
|
HINT:
|
|
•
|
Remove the release bearing only when it needs
to be replaced. Otherwise, the release bearing should be maintained as is on the
clutch release fork. |
|
•
|
Avoid exerting excessive force on the bearing
clip as this may deform the part shape. |
