Magnetic switch
|
| 2. |
General
|
The magnetic switch has two functions.
 |
Motor ON/OFF |
|
Pinion gear engagement and disengagement |
| Also, the magnetic switch operates in three steps when the starter is operated. |

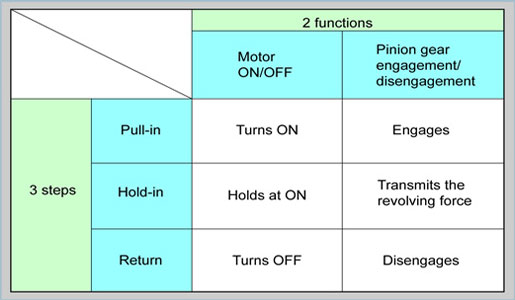

| The figure on the left below summarizes the magnetic switch operation. |
|
|
|
|
|
If an open circuit occurs in the pull-in coil, it cannot pull in the plunger resulting in a symptom where the starter will not function (no operational sound from the magnetic switch). |
|
If the main contacts have poor contact, insufficient current will flow to the field coils and the armature coil, and the starter revolutions decrease. |
|
If an open circuit occurs in the hold-in coil, it cannot hold in the plunger resulting in the plunger repeatedly “popping” in and out. |
|
