Inspection
Inspect Combination Meter Connector
Click on the underlined sentence.
1.

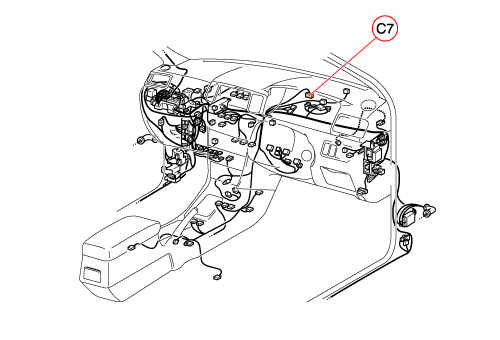

Electrical wiring routing
Refer to the "ELECTRICAL WIRING ROUTING" pages in the EWD to
confirm the positions of the combination meter connector "C7" (reference relates to Corolla ZZE12# series)
2.
Connector list
3.
System circuit
