Removal

Remove Headlight
Click on the underlined sentence.

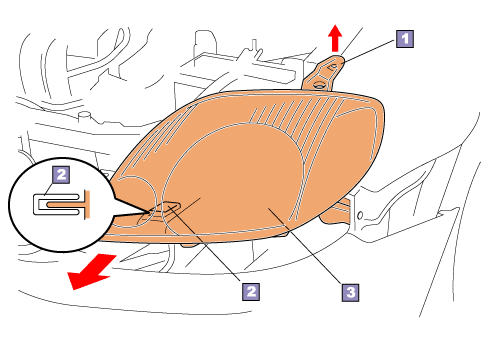

Pin
Inner Bracket
Headlight
1. Remove headlight
(1) Disconnect the headlight connector.

(2) Remove the headlight mounting bolts.

  (3) Disengage the headlight retainer from the pin.
Then, remove the inner bracket while pulling the headlight toward the front of the vehicle, and remove the headlight.

NOTICE:
Twisting the headlight during removal could damage the bracket.

(6/2)
