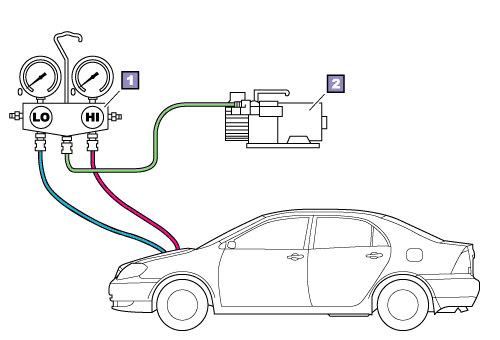

Manifold gauge |
|
|
Vacuum pump |
|
|
| Evacuating the air conditioner system is necessary to remove air and moisture from the system and to ensure the system is air tight. |
| |
| 1. |
Evacuation |
|
(1) |
Connect the manifold gauge set. |
| |
| HINT: |
| Connect the green system evacuation and charging hose to the middle port of the manifold gauge and connect the vacuum pump to the other end of the hose. |
|
